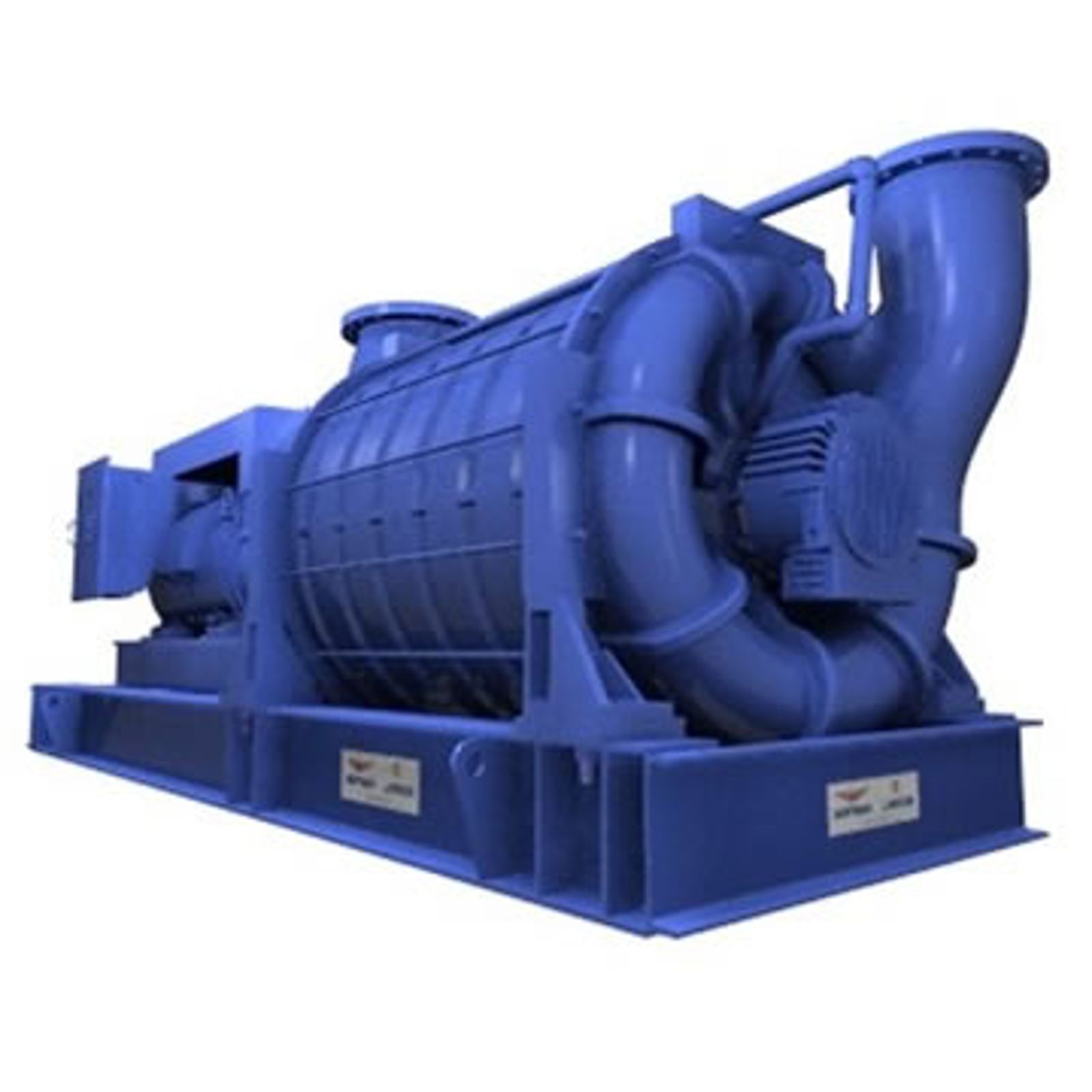

Multistage Centrifugal Blower - 950 Frame

Optimized for Efficiency in 50Hz markets.

Hoffman & Lamson multistage centrifugal blowers and exhausters are the ideal solution when it comes to processes that require uniform pressure, pulse-free flow and oil-free operation.

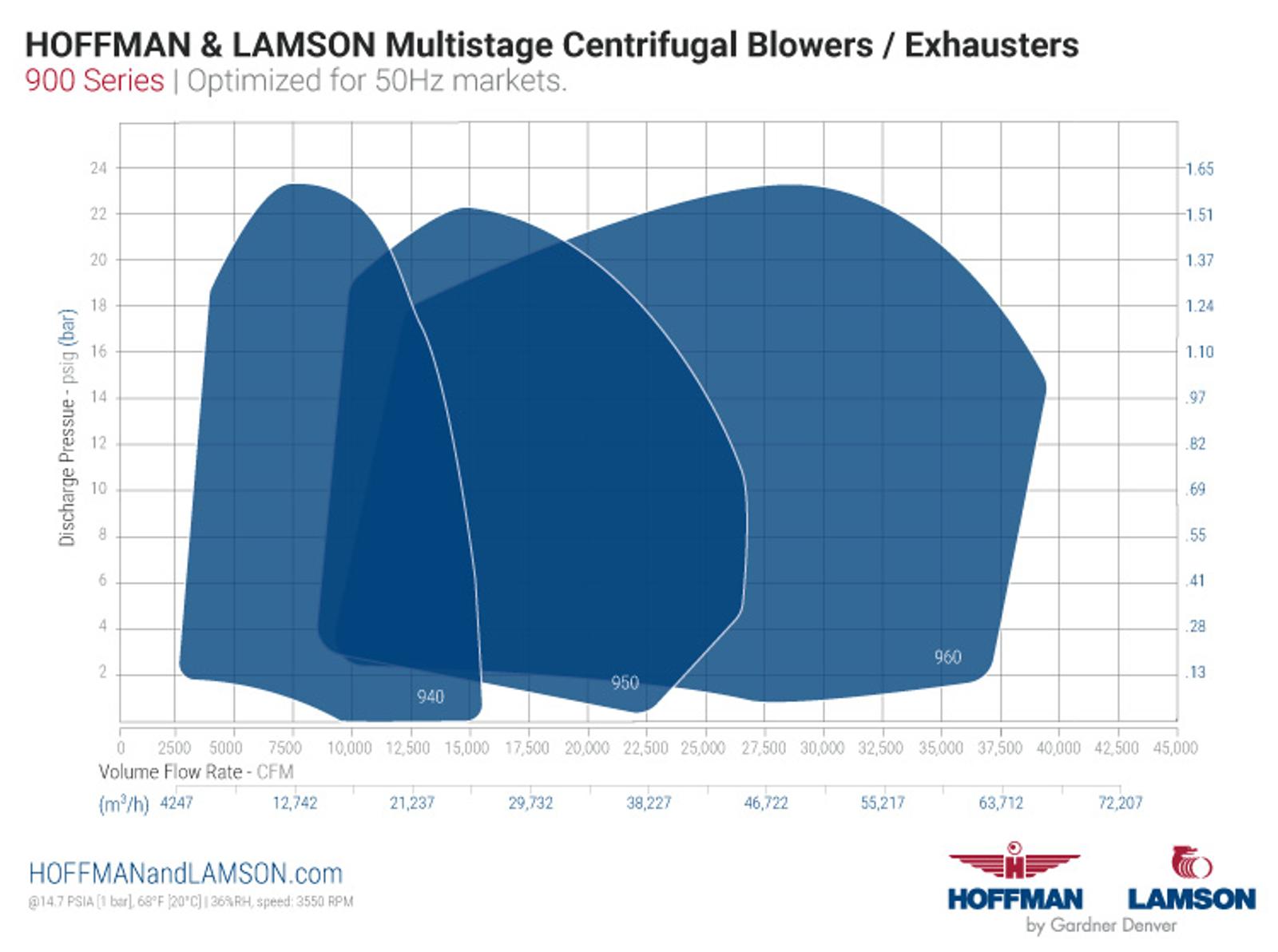

• Flow Range: 17,000 - 40,000M^3/hr
• Pressure: 3.4 - 160.3 KPa(g)
• Speed: 2970 RPM

The Hoffman & Lamson 950 features a true 50 Hz design that offers more than 8% higher efficiency.*

• Designed for optimum performance
• Direct coupled motor
• Higher pressure capability
• Quiet: no gear box needed
• Small footprint
• Bearing life of 10 years or more
• Constructed of cast iron with a carbon steel shaft and aluminum impellers

*Energy efficiency improvement compared to 60 Hz design.
