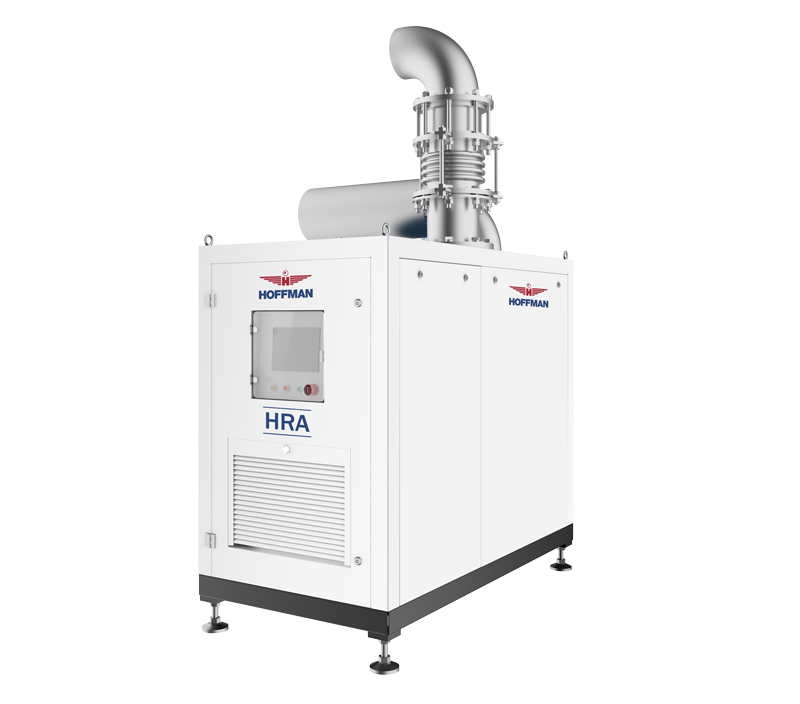

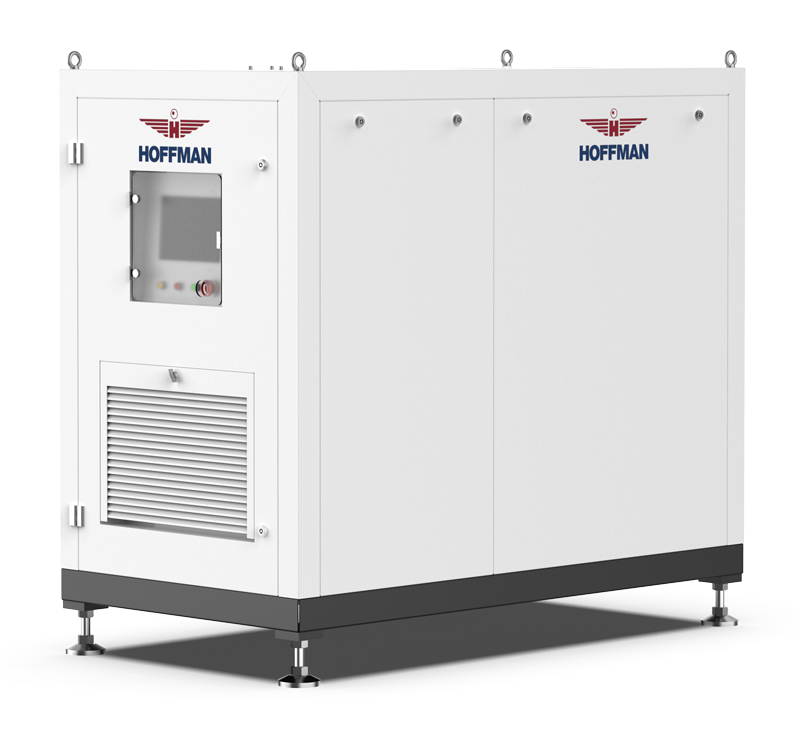

HRA Air Suspension Centrifugal Blower

Why Choose HRA?

Energy costs account for more than 75% of the total lifecycle cost of most aeration systems. The HRA blower is engineered to maximize efficiency while minimizing environmental impact.

Oil-Free Air Bearing Design

• Air serves as the bearing medium, eliminating the need for lubricating oil.
• Clean, contaminant-free airflow.
• Environmentally friendly operation.

High Energy Efficiency

• Direct-drive configuration eliminates gears and associated transmission losses.
• Premium permanent magnet synchronous motor with efficiency up to 97%.
• Optimized aerodynamic impeller design for superior performance

Reduced Maintenance

• No gearbox maintenance.
• No sealing ring replacement required.
• Air foil bearings designed for over 50,000 start/stop cycles.
• Minimal wear and extended service life.

Compact Installation

• Integrated package design.
• Small footprint compared to conventional blower systems.
• Factory-tested package for simplified installation.

Quiet Operation

• Fully enclosed package design.
• Sound levels below 80 dBA at one meter under specified operating conditions.

Smart Protection

• Built-in surge prediction and protection.
• Variable frequency control for maximum operating flexibility.
• Intelligent system monitoring for safe operation.

These features help users reduce operational costs while improving system reliability and process performance.

Advanced Air Bearing Technology

The HRA blower utilizes wear-resistant air suspension bearings that operate without mechanical contact during normal running conditions.

Benefits include:

• Friction-free operation
• No lubricating oil system required
• Reduced vibration
• Lower maintenance requirements
• Longer equipment life

The bearing system is manufactured using nickel-based superalloy materials and advanced wear-resistant coatings to maximize durability during startup and shutdown cycles.

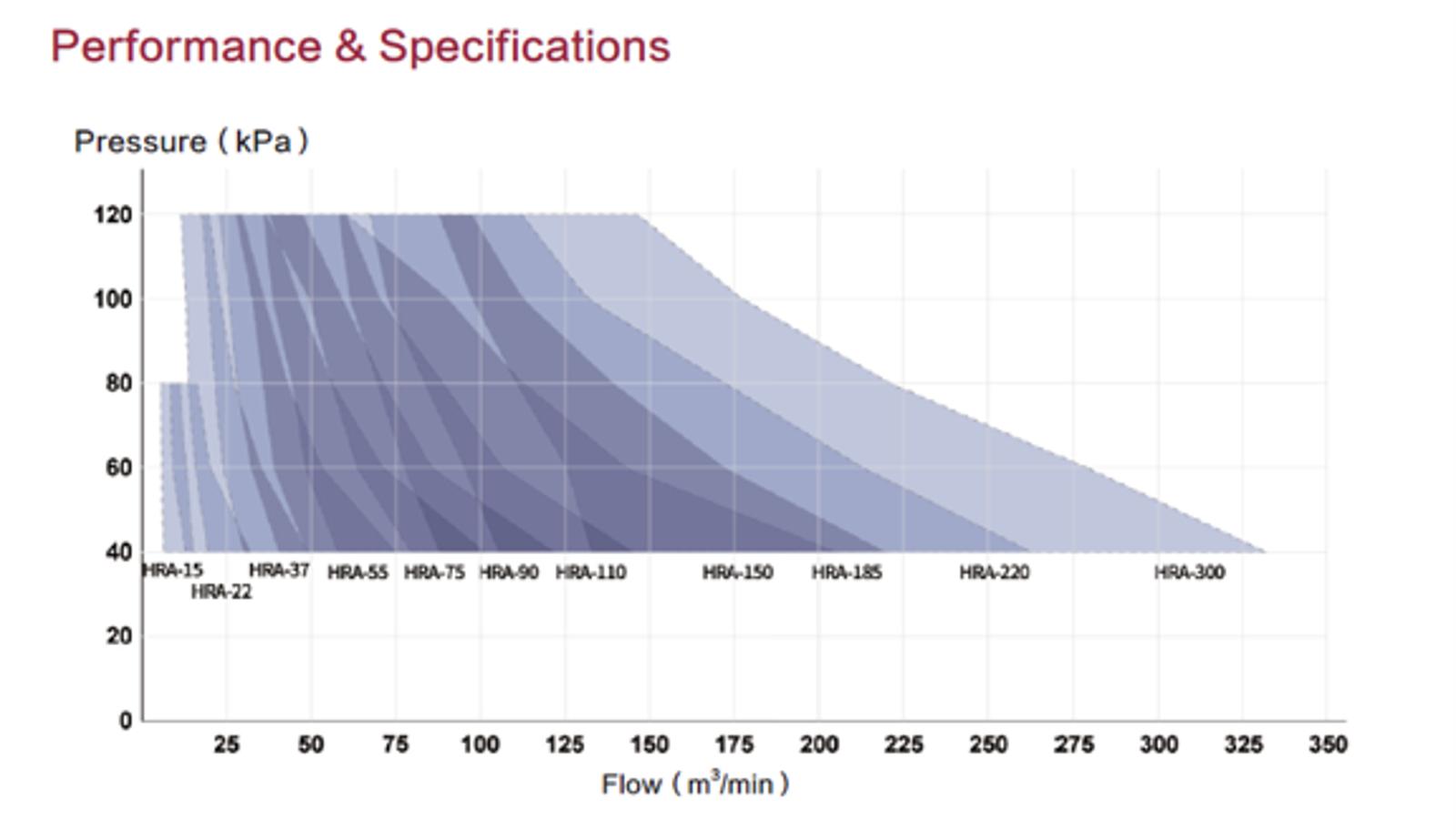

Technical Data：

Available pressure range: 40-120 kPa

Available airflow range: 13-332 m³/min

Intelligent Control & Monitoring

The HRA series is equipped with an advanced PLC-based control platform featuring a user-friendly touchscreen Human Machine Interface (HMI).

Control Features:

• PLC-controlled operation
• Pressure and flow control modes
• PID-based automatic regulation
• Ethernet communication capability
• Modbus connectivity
• Remote monitoring support
• Multiple temperature and pressure inputs
• Expandable I/O architecture
• Intelligent fault management
• Protection for operation in challenging environments

The real-time monitoring system enables predictive maintenance and lifecycle management, helping operators improve reliability and reduce downtime.

Every HRA blower package includes:

• Air suspension centrifugal blower
• High-speed permanent magnet motor
• High-efficiency impeller
• Air cooling system
• Air filtration system
• Wear-resistant dynamic pressure foil bearings
• Variable Frequency Drive (VFD)
• PLC control system
• HMI touchscreen
• Anti-surge protection system
• High-speed drive technology

All components are integrated into a compact enclosure for simplified installation and operation.

The HRA Air Suspension Centrifugal Blower is suitable for a wide range of industrial and municipal processes, including:

Wastewater Treatment - Efficient aeration for municipal and industrial wastewater facilities.

Food & Beverage - Clean, oil-free air supply for critical process applications.

Renewable Energy - Supporting sustainable energy and environmental projects.

Air Separation - Reliable process air for industrial gas production facilities.

Oil & Gas - High-efficiency process air in demanding operating environments.

General Industrial Aeration - Energy-efficient airflow for various industrial applications.
