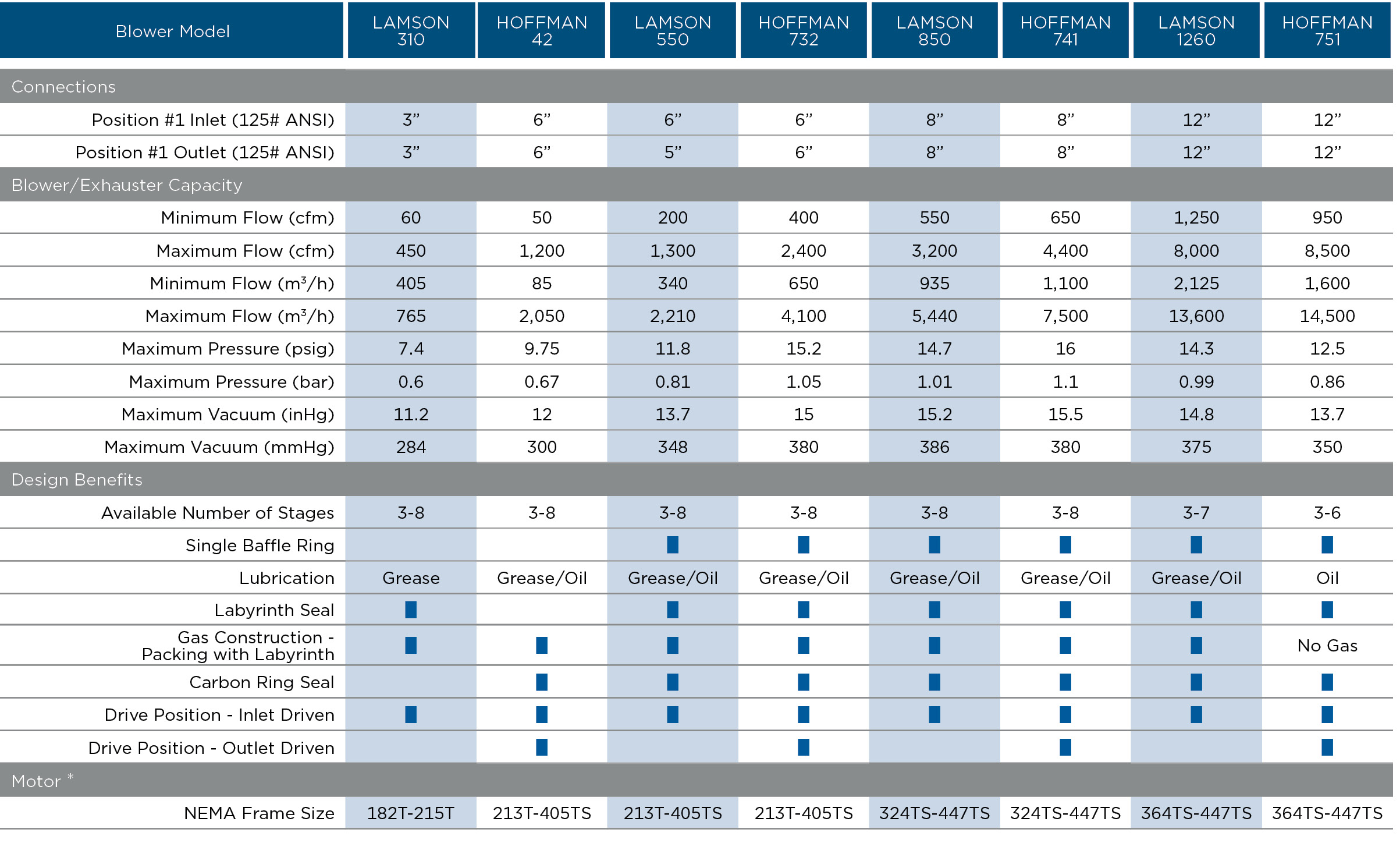

Choose the optimal Standard Blower Package for your process based on the number of stages, drive position, seal type, and lubrication required. The selection guide, located under the technical data tab, contains all the blower packages in reduced lead time portfolio in a single, easy-to-understand document. Use this guide to lead you through the process of selecting the right multistage centrifugal blower package for your application.
Hoffman & Lamson is proud to offer additional options to customize standard packages for unique situations. Please note, additional lead time of 2 weeks will be applied to orders selecting up to 6 customization.
• Backed Phenolic Coating – Plasite®
• Red Oxide Paint on Cast Iron Internals
• HOFFMAN & LAMSON Standard High Temperature Paint
• Non-Oxygen Cleaning
• LAMSON Models Outlet Driven
• Export Crating
• External Drain Tubing with Ball Valve
• HOFFMAN & LAMSON Standard External Oilers
• Custom Motor with Lead Time Under 2 Weeks*
• Mount Customer Supplied Motor**
• High Temperature Oil
• Additional Unwitnessed Testing Including: ASME PTC-10 Performance, Sound Level, Hydrostatic, Sequential or Residual Balance, Seal Leak, Vibration Signature
Selecting a quantity of 3 or less per order from the above are considered a standard package. Blowers sold as bare or packaged, if packaged, a motor is included. Performances noted here are typical and not job specific. Consult with a HOFFMAN & LAMSON Representative for job specific blower or exhauster performance sizing. *Standard motors are TEFC. NEMA Premium Efficiency. 3ph, 60/50 Hz, 208/230-490 or 575V, 2 Pole. Blue square = standard
A. All Standard Packages are offered in color RAL 5005 Signal Blue. Standard paint system is an Acryllic Polyurethane Paint with an Epoxy Primer. Custom color and paint systems are available on custom packages only.
A. Each bare blower comes with a standard blower O&M manual and Standard Blower Assembly Drawing. Complete packages also include a standard Unit Outline Drawing. All documentation provided is electronic format only.
A. Base Standard Packages do not include instrumentation. HOFFMAN & LAMSON standard blower vibration and temperature sensors can be added at an additional cost with no change in lead time.
A. This is not part of the offering for Standard Packages. Witness testing is available with potential added lead time. Consult HOFFMAN & LAMSON if witness testing is required.
A. Only standard position #1 inlet and outlet heads are available within the time-frame of Standard Packages. Consult HOFFMAN & LAMSON for a quote when other head positions are required.
A. Approval packages are available using standard documentation and relevant package configuration data sheets. Time for standard approval package is up to 1 week after receipt of order. Production lead time is applied following written release to manufacture.
A. Consult Hoffman & Lamson with your requirements. The availability of a standard package will be confirmed or a special quotation will be provided.
A. Consult Hoffman & Lamson for a quote. There are control panels and other sets of accessories that are available within the reduced lead times. Each should be reviewed in detail for confirmation.
ABOUT Hoffman and Lamson

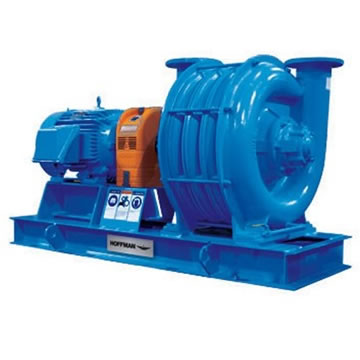

Hoffman™ and Lamson™ brands of centrifugal blowers and exhausters are among the many compressed air and gas technologies manufactured by Gardner Denver Inc.
Part of the Nash Division, they are American originals. Hoffman™ and Lamson™ brands have been setting industry standards for excellence, reliability, and customer satisfaction for over 100 years. Lamson, established in 1880, and Hoffman, in 1905, are brands customers know and continue to trust.
