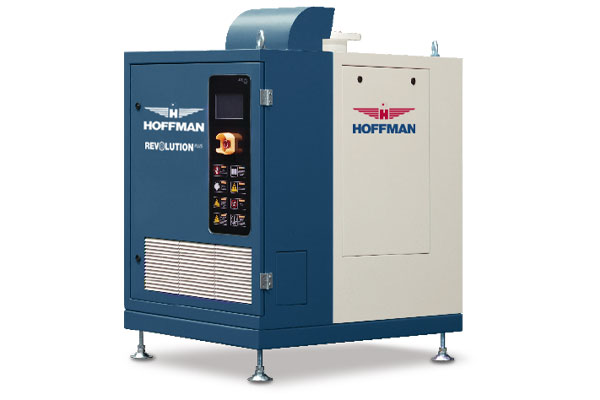

REVOLUTIONPLUS | 10-75HP Air-Cooled, Single Impeller High Speed Turbo Blower

High Speed Turbo Blower 10-50HP
Hoffman & Lamson's series of high-speed blowers combine an advanced blower management system with a significantly smaller footprint than traditional blowers to set a new standard for design, efficiency, and performance. HOFFMAN's REVOLUTIONPLUS turbo blowers come factory pre-wired and tested in an ergonomically designed sound enclosure for plug-and-play operation. The performance window and range of the units vary depending on the flow/pressure combination, job site conditions, and the application itself.
Contact UsRequest a QuoteRequest Service, Parts or Support

HOFFMAN's REVOLUTIONPLUS 10-75HP models are manufactured with a single impeller and air-cooled. These models can be designed using an aluminum rotor induction motor, a copper rotor induction motor, or a permanent magnet synchronous motor depending on the performance requirements.

Our high-speed turbo blowers are built with a compression unit equipped with a blow-off valve that releases air, protecting the unit during start/stop, while an inverter controls the rotating speed of the blower’s high-speed motor. Housed in a robust, sound-insulated enclosure, the REVOLUTIONPLUS series features a Programmable Logic Controller (PLC); allowing operators to actively monitor, control, and adjust the speed to meet changing process demands and operating conditions. HOFFMAN high-speed turbo blowers are fitted with a VSD (variable speed drive) as standard. The VSD adjusts the motor’s operating speed to meet the operational need.

HL turbo blower air flow diagram

Features and Benefits

HOFFMAN's REVOLUTIONPLUS high-speed turbo blowers have set new industry standards with an effective design to improve the operator's use and blower performance. Each model is fitted with a compact and efficient high-speed motor that provides a higher operational velocity, output, and performance than other standard motors. The series is manufactured with impellers made from Class III Anodized Aluminum for durability and then combined with our latest multi-foil air bearing patented design and coating technology.

High-Efficiency

Provides energy savings of up to 40% and a significantly reduced carbon footprint.

Low Noise Level

Constructed to mitigate noise pollution <85dBA sound rating.

Simple Maintenance

No Belt. No Gears. No Oil.

Extended Bearing Life

Latest air foil bearing technology reduces heat loss in the motor and improves total efficiency.
