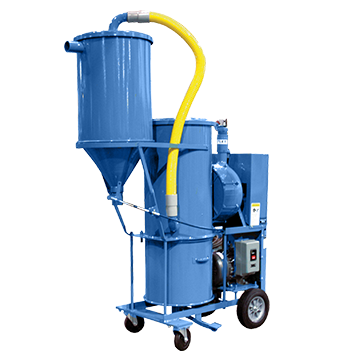

Industrial Central Flux Recovery Vacuum Systems

HOFFMAN & LAMSON flux recovery vacuum systems are engineered for efficiency, convenience, healthy work environments, and compliance with regulations. Our systems provide optimum performance at the lowest operational expense possible.

Contact us
Request a Quote Aftermarket
Share

Description

Our industrial central vacuum systems remove unused flux, slag, or fused particles from the work and separate the slag-free flux into a hopper for future use. Removing the flux dust results in cleaner welds, fewer rejects, and increased production. HOFFMAN & LAMSON systems are available as pre-engineered systems or can be engineered to suit specific applications.

Invincible Flux Recovery Systems

HOFFMAN & LAMSON invincible line provides dependable flux recovery systems for industrial applications. Some firms that are extensively engaged in welding, have installed large quantities of these systems. Our flux recovery systems are available in six horsepower ranges and offer cost-saving advantages for virtually submerged arc welding operations, regardless of size or type.

Continuous Duty

The sturdy induction motors deliver years of continuous service with minimal maintenance. All units are carefully designed to resist the abrasive nature of welding flux. Special inlets and rubber baffles are used and the vacuum producer is a separate unit from the collectors. The invincible flux recovery systems are compact, lightweight, and easy to install. Our model's flexible design eliminates the need for custom made installations in most cases.

Our flux recovery systems recover all unused flux from the work, remove slag or fused particles and return the slag-free flux to the hopper of the welder, all in one continuous, automatic operation. When equipped with a primary separator, our systems will completely remove flux flour, eliminating porosity in the weld.

HOFFMAN & LAMSON flux recovery systems do the whole job automatically and more efficiently than the old manual method of salvage and screening. Silicosis hazard is dramatically reduced.

By removing the fine dust, like flux flour, during the recovery process, our flux recovery systems are responsible for cleaner welds, reducing welding rejects, and increasing production speed.

Separator Tanks

To ensure efficient separation of reusable flux from slag and flux flour, many systems utilize a dual separator. The primary separator isolates slag and fused particles and enhances the removal of flux flour. It also acts as a collection hopper for unused flux. For the ultimate in separation efficiency for finer flux grades, a cyclone baffle on the separator cover creates a circular flow as flux enters. This air motion allows reusable fine flux to settle, ensuring complete separation from flux flour.

Accessories

  • Hoses
  • Butterfly Valve
  • Slag Screen
  • Other Accessories Available

Models Offered

 600 Series

  • Powered by a 3/4 hp 3,600 RPM ball bearing induction-type motor
  • Three stage centrifugal vacuum producer
  • Aluminum sections and impellers
  • Lightweight
  • Designed for continuous service
  • Can recover 10 pounds of flux per minute with its 11/2in. ID hose

400 Series

  • Powered by a 13/4 hp 3,600 RPM induction-type motor
  • Four stage centrifugal vacuum producer
  • Aluminum sections and impellers
  • Designed for continuous service

300 Series

  • Powered by a 3 hp 3,600 RPM induction-type motor
  • Three stage centrifugal vacuum producer specifically designed for intermediate flux recovery operations
  • Adjustable multiple V-belt drive
  • Sealed and pre-lubricated oversized ball bearings
  • Can recycle 31 pounds of flux recovery every minute with a 25 ft. 2in. hose at 10 ft. vertical rise

800 Series

  • Powered by a 5 hp 3,600 RPM induction-type motor
  • Four stage centrifugal vacuum producer specifically designed for medium-duty flux recovery operations
  • Adjustable multiple V-belt drive
  • Lightweight
  • Sealed and pre-lubricated oversized ball bearings
  • A large 3,600 in2 inverted filter ensures complete and positive separation

700 Series

  • Powered by 71/2 or 10 hp 3,600 RPM induction-type motor
  • Designed for the largest flux recovery jobs
  • Heavy-duty
  • Four stage centrifugal vacuum producer
  • Sealed and pre-lubricated oversized ball bearings
  • Aluminum sections and impellers
